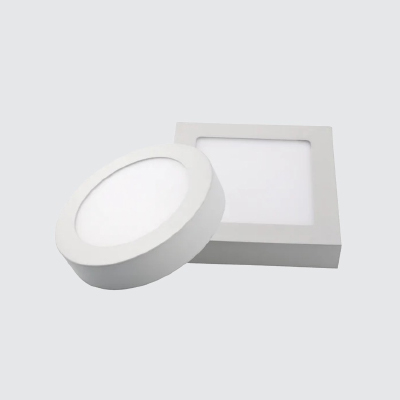

Project Image

LED Surface Panel Light

LEDFU Surface AL Panel is designed with Edge Lit illumination technology that offers uniform light distribution. With an ingress protection rating of IP20, they are entirely safe for indoor use. PDC AI Housing provides excellent thermal management.

Applications

  • Residential
  • Hospitals
  • Office
  • Banks

    • Features

  • Edge lit
  • Uniform Illuminance
  • Highly efficient diffuser
  • Constant current LED driver
  • Low glare
  • High CRI
  • Surge protected
  • Aluminium heat sink for better heat dissipation

    • Technical Specifications

    System Wattage 6W 6W 12W 12W 18W 18W
    Category Ref. No. BES08AL006WC BES07AL006WC BES08AL012WC BES07AL012WC BES08AL018WC BES07AL018WC
    Description Edgelit Surface Sq Panel Edgelit Surface Rnd Panel Edgelit Surface Sq Panel Edgelit Surface Rnd Panel Edgelit Surface Sq Panel Edgelit Surface Rnd Panel
    Operating Voltage Range 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V
    Lumen 600 LM 600 LM 1200 LM 1200 LM 1800 LM 1800 LM
    CCT 6500K 6500K 6500K 6500K 6500K 6500K
    CRI >80 >80 >80 >80 >80 >80
    PF ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95
    THD < 15% < 15% < 15% < 15% < 15% < 15%
    Surge 4kv 4kv 4kv 4kv 4kv 4kv
    IP IP20 IP20 IP20 IP20 IP20 IP20
    Mounting Surface Surface Surface Surface Surface Surface
    Dimension(mm) 121*121*39 ∅=121,H=39 172*172*39 ∅=172,H=39 220*220*39 ∅=220,H=39
    • Product images are inductive.
    • Specifications mentioned above may change subject to continual improvement in the product.
    • Product also available in 3000K & 4000K.
