LED Street Light S2

  • Home
  • LED Street Light S2

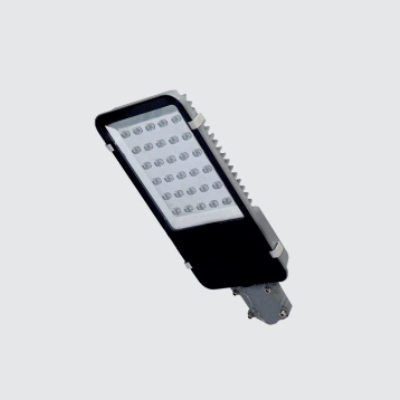

Project Image

LED Street Light S2

LEDFU Street Light LFSL02 Series are pressure die cast with powder coated housing with excellent thermodynamic design. Type 2 & Type 3 beam distribution ensures high coefficient of utilization & results in max delivery of lumen on road. This design offers wide range of wattages. An aluminium frame on the front makes the IP rating more resistant to dust and water for outdoor applications.

Applications

  • Highways
  • Industries
  • City Roads
  • Security Lighting

    • Features

  • Surge @ 4kV internal
  • Excellent Thermal Management
  • Toughened Glass
  • Front Maintainable Controlled Gear
  • Powder Coated PDC Housing
  • High Impact Resistant
  • Driver Protection Against Open And Short Circuit
  • Secondary Optics For Desired Light Spread

    • Technical Specifications

    System Wattage 40W 45W 60W 72W 90W 100W 120W 150W 200W
    Category Ref. No. BES13AL040WC BES13AL045WC BES13AL060WC BES13AL072WC BES13AL090WC BES13AL100WC BES13AL120WC BES13AL150WC BES13AL200WC
    Operating Voltage Range 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V
    Lumen 4000 LM 4500 LM 6000 LM 7200 LM 9000 LM 10000 LM 12000 LM 15000 LM 20000 LM
    CCT 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K
    CRI >70 >70 >70 >70 >70 >70 >70 >70 >70
    PF ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95
    THD < 10% < 10% < 10% < 10% < 10% < 10% < 10% < 10% < 10%
    Surge 4kv 4kv 4kv 4kv 4kv 4kv 4kv 4kv 4kv
    IP IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66
    Secondary Optics Yes Yes Yes Yes Yes Yes Yes Yes
    Mounting Bracket (OD) 35mm 35mm 35mm 50mm 50mm 50mm 50mm 50mm 50mm
    • Product images are inductive.
    • Available upto 120lm/W.
    • Surge Protection available upto 20KV on demand.
    • Product also available in Warm White (3000k) on demand.
    • Specifications mentioned above may change subject to continual improvement in the product.
