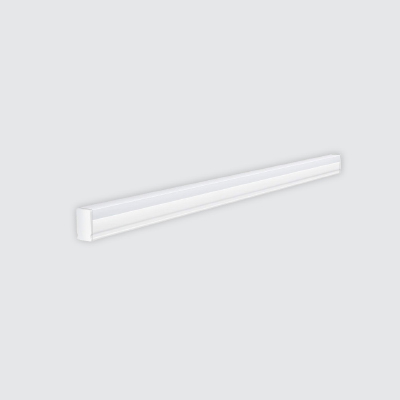

Project Image

LED Batten Light

LEDFU Batten Lights offer eco-friendly and energy-efficient lighting. High grade PC diffuser offers uniform light distribution with minimal glare. Best-in-class LED offers high luminous efficacy along with long lifespan of the luminaire.

Applications

  • Residences
  • Schools
  • Commercial Buildings

    • Features

  • Surge protected
  • High CRI
  • Long Lifespan
  • Constant current LED driver
  • High Grade PC diffuser
  • PC/AL Heat Sink
  • Driver Protection Against Open And Short Circuit

    • Technical Specifications

    System Wattage 20W 10W 20W 10W
    Category Ref. No. BES10PC020WC BES10PC010WC BES10AL020WC BES10AL010WC
    Description PC 4' Batten - CW PC 2' Batten - CW AL 4' Batten - CW AL 2' Batten - CW
    Operating Voltage Range 175 - 300 V 175 - 300 V 175 - 300 V 175 - 300 V
    Lumen 2000 LM 1000 LM 2000 LM 1000 LM
    CCT 6500K 6500K 6500K 6500K
    CRI >80 >80 >80 >80
    PF ≥0.95 ≥0.95 ≥0.95 ≥0.95
    THD < 15% < 15% < 15% < 15%
    Surge 4kv 4kv 4kv 4kv
    IP IP20 IP20 IP20 IP20
    • Product images are inductive.
    • Specifications mentioned above may change subject to continual improvement in the product.
    • Product also available in 3000K & 4000K.
