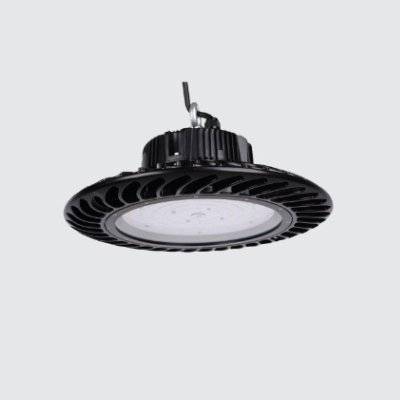

LEDFU High Bay luminaires are designed to fulfill the needs of both industrial and commercial applications wherein performance, reliability, energy efficiency and maintenance-free operation are very crucial. High lumen density LED arrays are mounted on a metal core circuit board in an engineered geometrical shape to ensure uniform thermal distribution with low glare and provide uniform light spread. The luminaires are of die cast aluminium housing with an integral heat sink which provide superior thermal conduction and natural air convection to maintain the desired junction temperature of LED.
| System Wattage | 80W | 100W | 120W | 150W | 200W |
|---|---|---|---|---|---|
| Category Ref. No. | BES16AL080WC | BES16AL100WC | BES16AL120WC | BES16AL150WC | BES16AL200WC |
| Operating Voltage Range | 120 - 300V | 120 - 300V | 120 - 300V | 120 - 300V | 120 - 300V |
| Lumen | 8000 LM | 10000 LM | 12000 LM | 15000 LM | 20000 LM |
| CCT | 5700-6500K | 5700-6500K | 5700-6500K | 5700-6500K | 5700-6500K |
| CRI | >70 | >70 | >70 | >70 | >70 |
| PF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
| THD | < 10% | < 10% | < 10% | < 10% | < 10% |
| Surge | 4KV (Internal) + 10KV SPD | 4KV (Internal) + 10KV SPD | 4KV (Internal) + 10KV SPD | 4KV (Internal) + 10KV SPD | 4KV (Internal) + 10KV SPD |
| IP | IP65 | IP65 | IP65 | IP65 | IP65 |
| Secondary Optics | Yes | Yes | Yes | Yes | Yes |
