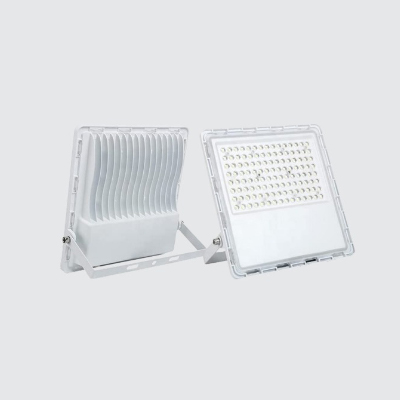

LED Flood Light S1

LEDFU Flood Light S1 Series offers high quality PDC housing with integrated lens to focus the light spread. It is a low weight design which makes the installation easy.

Applications

  • Building
  • Yards
  • factories
  • Parking
  • Sign Boards
  • Warehouses

    • Features

  • Integrated lens
  • Powder Coated Housing
  • High lumen output
  • Front maintainable control gear
  • Waterproof IP66 ingress protection
  • Surge @ 4KV internal
  • Wide beam angel
  • Driver protection against short circuit & open circuit

    • Technical Specifications

    System Wattage 30W 50W 70W 100W 150W 200W
    Category Ref. No. BES14AL030WC BES14AL050WC BES14AL070WC BES14AL100WC BES14AL150WC BES14AL200WC
    Operating Voltage Range 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V
    Lumen 3000 LM 5000 LM 7000 LM 10000 LM 15000 LM 20000 LM
    CCT 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K 5700 - 6500K
    CRI >70 >70 >70 >70 >70 >70
    PF ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95
    THD < 10% < 10% < 10% < 10% < 10% < 10%
    Surge 4kv 4kv 4kv 4kv 4kv 4kv
    IP IP66 IP66 IP66 IP66 IP66
    Secondary Optics No No No No No No
    • Product images are inductive.
    • Available upto 120lm/W.
    • Product also available in Warm White (3000k).
    • Specifications mentioned above may change subject to continual improvement in the product.
