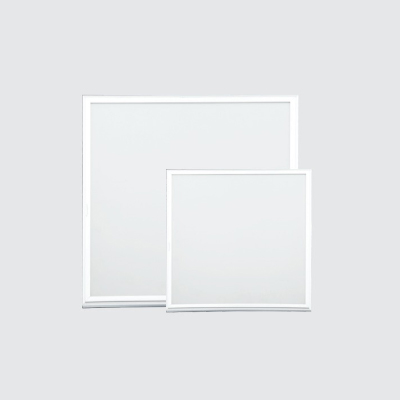

Recess Panel Light

LEDFU Recess AL Panel Lights are designed with Edge Lit illumination technology that offers uniform light distribution & minimum glare. High on aesthetics with slim design, these panel lights offer superior performance. Housing is made of PDC Aluminium which provides excellent thermal management.

Applications

  • Residential
  • Hospitals
  • Office
  • Banks

    • Features

  • Edge lit
  • Uniform light distribution
  • Highly efficient diffuser
  • Constant current LED driver
  • Low glare
  • Surge protected
  • Driver Protection Against Open And Short Circuit

    • Technical Specifications

    System Wattage 3W 3W 6W 6W 12W 12W 18W 18W
    Category Ref. No. BES06AL003WC BES05AL003WC BES06AL006WC BES05AL006WC BES06AL012WC BES05AL012WC BES06AL018WC BES05AL018WC
    Description Edgelit Recess Sq Panel Edgelit Recess Rnd Panel Edgelit Recess Sq Panel Edgelit Recess Rnd Panel Edgelit Recess Sq Panel Edgelit Recess Rnd Panel Edgelit Recess Sq Panel Edgelit Recess Rnd Panel
    Operating Voltage Range 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V 120 - 300V
    Lumen 300 LM 300 LM 600 LM 600 LM 1200 LM 1200 LM 1800 LM 1800 LM
    CCT 6500K 6500K 6500K 6500K 6500K 6500K 6500K 6500K
    CRI >80 >80 >80 >80 >80 >80 >80 >80
    PF ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95 ≥0.95
    THD < 15% < 15% < 15% < 15% < 15% < 15% < 15% < 15%
    Surge 4kv 4kv 4kv 4kv 4kv 4kv 4kv 4kv
    IP IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20
    Mounting Recess Recess Recess Recess Recess Recess Recess Recess
    Cut-out Size(mm) 72*72 ∅=72 105*105 ∅=105 155*155 ∅=155 205*205 ∅=205
    • Product images are inductive.
    • Specifications mentioned above may change subject to continual improvement in the product.
    • Product also available in 3000K & 4000K.
