Well Glass

Project Image

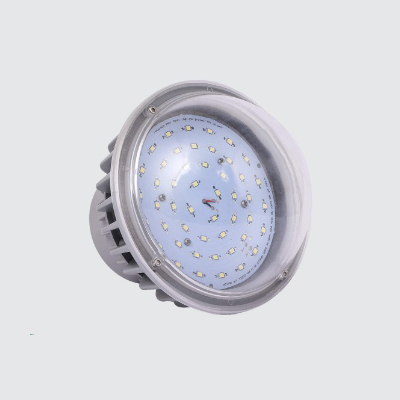

Well Glass

Energy saving, environment-friendly, durable, vertical mounting with bracket, pressure die caste housing with polycarbonate cover having high power LED source.

Applications

  • Industrial Bays
  • Oil Process Locations
  • Steel & Metal Plants
  • Cement Factories
  • Medium Industrial Units
  • Material Handling System

    • Features

  • Surge @ 4KV internal
  • Pressure Die Cast Housing
  • IP65
  • Polycarbonate Cover
  • Mounting Arrangement with Eyebolt/Bracket Mounting
  • Driver Protection Against Open And Short Circuit

    • Technical Specifications

    System Wattage 40W 70W
    Category Ref. No. BES18AL040WC BES18AL070WC
    Operating Voltage Range 120 - 300V 120 - 300V
    Lumen 4000 LM 7000 LM
    CCT 5700-6500K 5700-6500K
    CRI >70 >70
    PF ≥0.95 ≥0.95
    THD < 10% < 10%
    Surge 4KV 4KV
    IP IP65 IP65
    Secondary Optics No No
    • Also available in WW(3000K)
    • Available upto 120lm/W
    • Product images are inductive.
    • Product available upto 20KV on demand.
    • Specifications mentioned above may change subject to continual improvement in the product.
